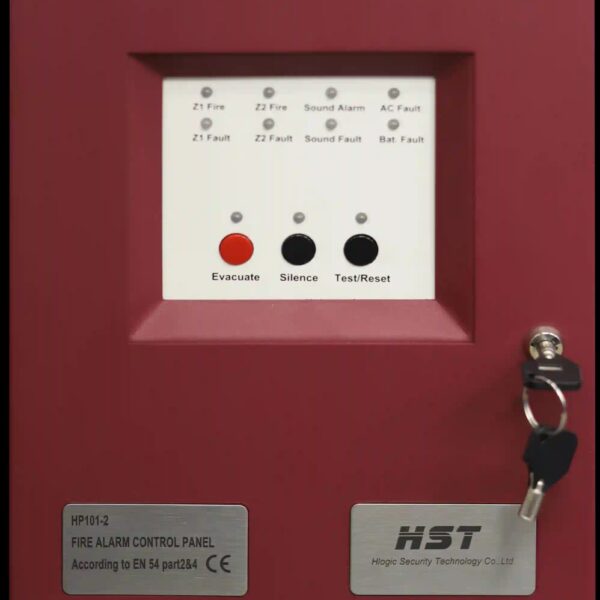

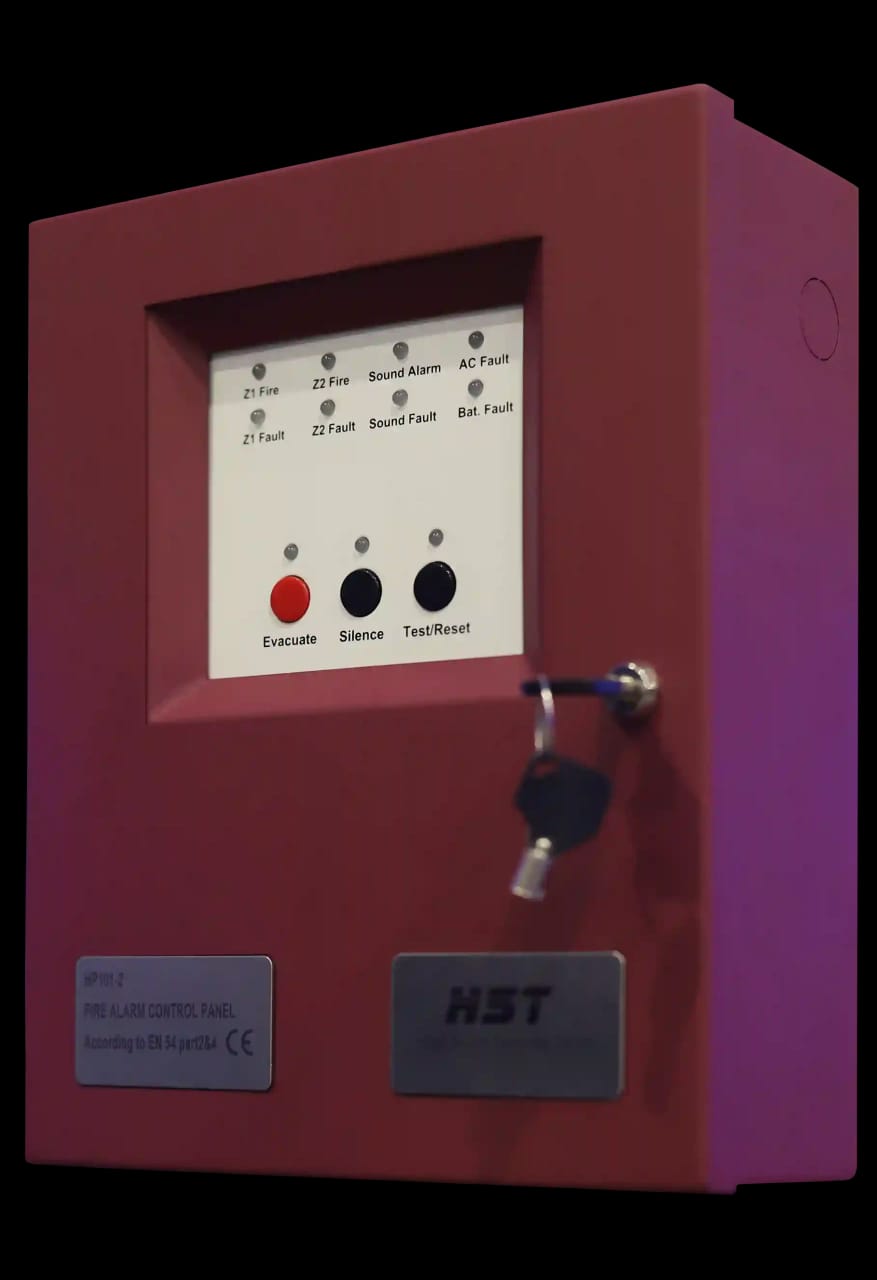

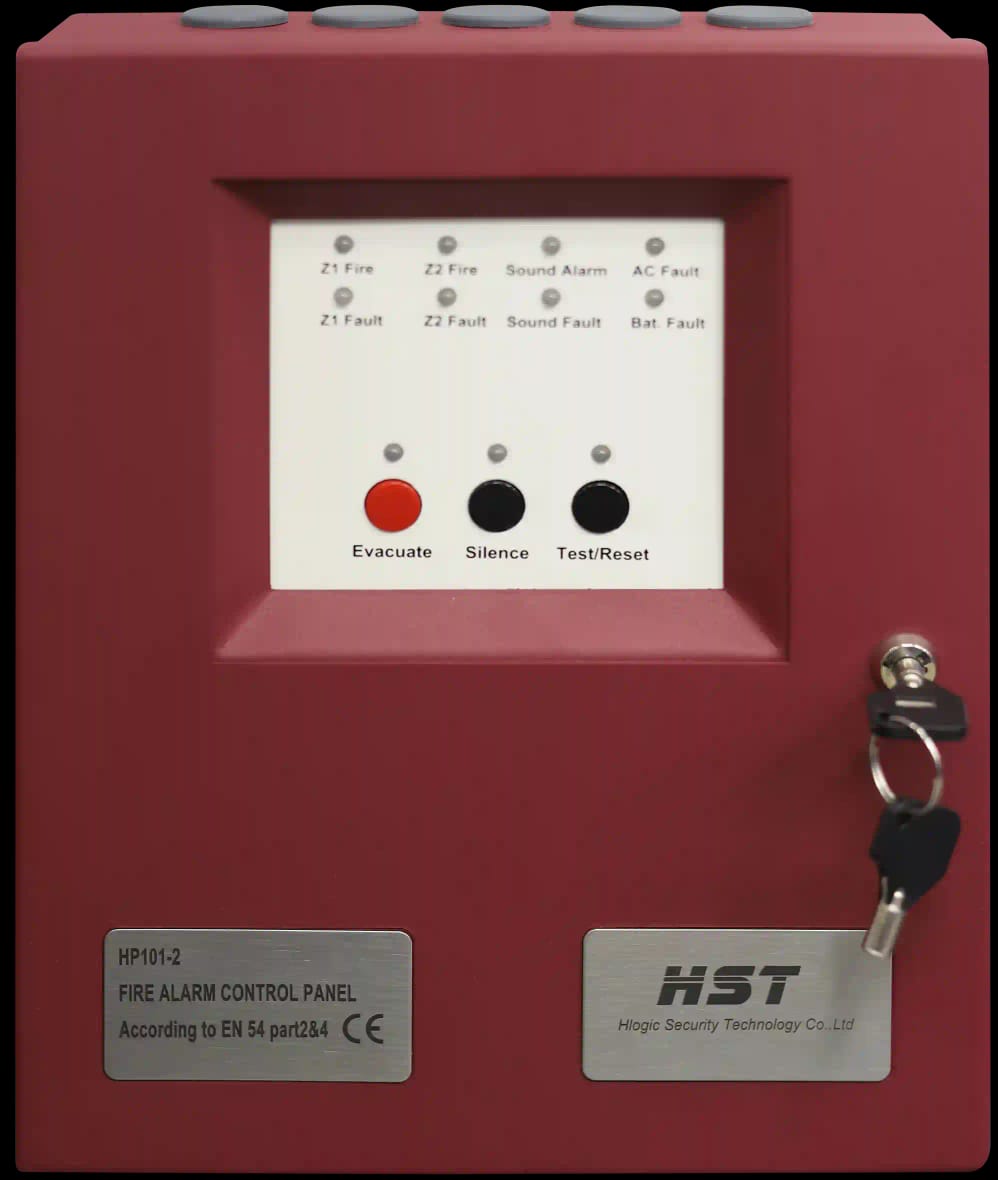

HP101-02 Conventional Fire Alarm Control Panel 2 ZONE
General Description:
The HP1010 Series conventional fire alarm
control panel is a 24 volt, 2 to 16 zones,
class B, conventional Fire Alarm Control Panel.
Designed exclusively to meet the latest market
requirements and future ULC codes, the highly
cost-effective Series can be used in a
variety of low- to mid-sized applications.
The panel uses conventional input devices.
The panel accepts water flow devices, two-wire
smoken or heat detectors, four-wire smoken or
heat detectors,call points and other normally-open
contact devices.
Outputs include four Notification Appliance Circuits
(NAC, SOUND1-4), three standard Form-A relays
(alarm, trouble and supervisory) and an EIA-485 port
to interface with repeaters.
The panel is field programmable via the panel
keypad. It also supervises all wiring, AC voltage
and battery level.
Original price was: 6.452,00 EGP.5.161,00 EGPCurrent price is: 5.161,00 EGP.
Description
Features:
2,4,8,16 Class B Initiating Device Circuits (IDCs)
All zones accept conventional detectors and any
normally open contact device
1-4 Class B Notification Appliance Circuits (NACs)
One Form-A Alarm Relay
One Form-A Trouble Relay
One Form-A Supervisory Relay
3.0 amps of system power
Max 30 conventional detectors in one zone.
Auto/Manual mode setting enable walk test.
Each Zone can be disabled
Sound output can be disabled.
Manual active sound output enabled.
Manual active sound output enabled.
Able to report short and broken circuit of detection zones.
Designed with standby batteries and space provision for
two sealed lead-acid batteries.
Testing and disable functions.
Can connect maximum 32 repeater panels by RS485
communication port.
